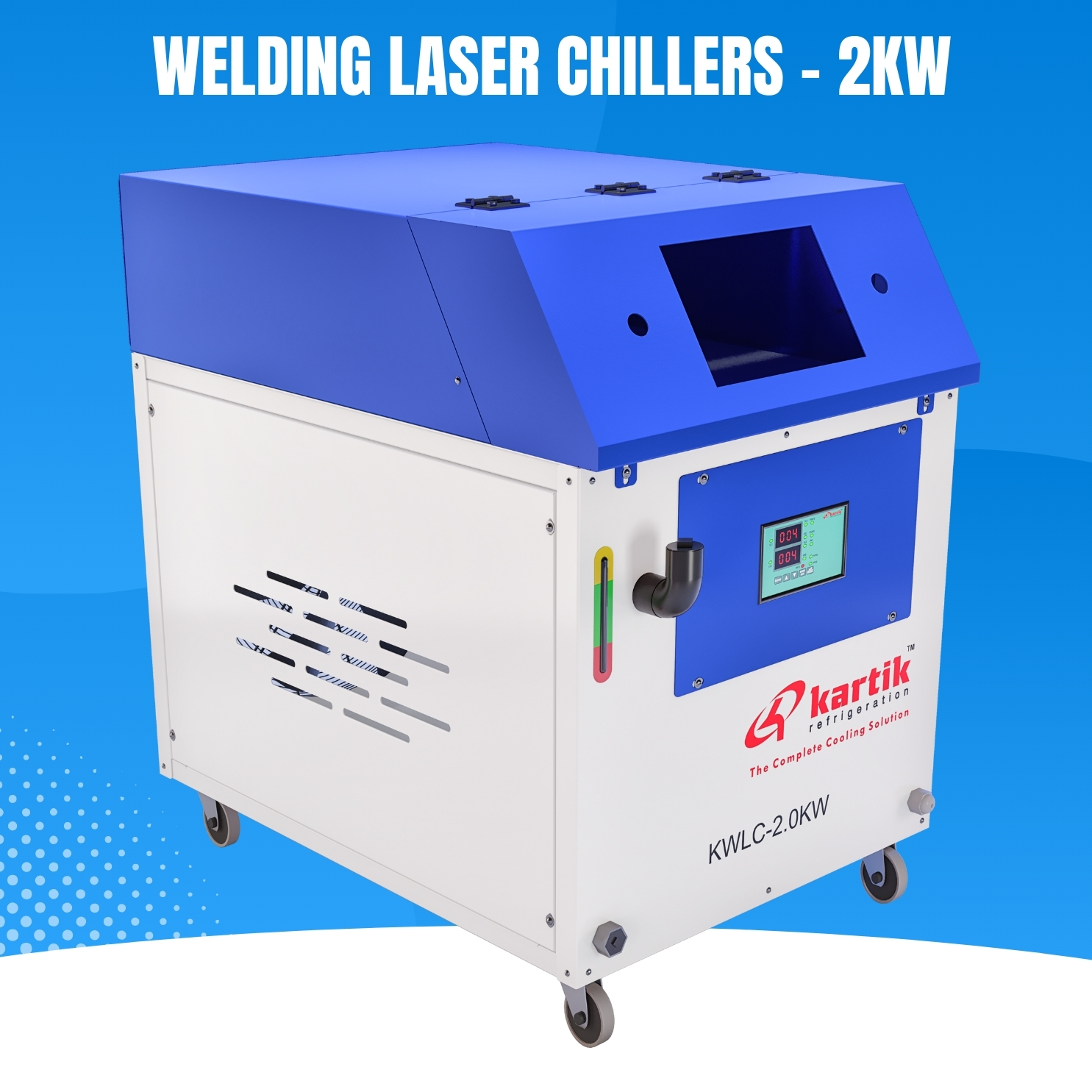

Welding Laser Chiller
Description
Designed to support the intense cooling requirements of advanced laser technologies, the Kartik Chiller Series is available in four robust models: KWLC-1.5kW, 2kW, 3kW, and 5kW. Each model is tailored to match varying levels of laser output, making the series an ideal choice for businesses of all sizes — from precision fabrication workshops to large-scale manufacturing facilities.
At the core of the Kartik Chiller Series is a focus on durability and efficiency. Constructed using high-grade components and engineered for long-term performance, these chillers operate with remarkable reliability even under continuous and high-stress conditions. Their advanced cooling mechanisms help maintain optimal laser temperature, prevent overheating, and reduce the risk of thermal damage to sensitive equipment — ultimately extending the life of your fiber lasers and minimizing downtime.
MODEL
1.5kW
2kW
3kW
5kW
Voltage AC
220-V-Single phase
220-V-Single phase
220-V-Single phase
380-V-Three Phase
Frequency
50Hz
50Hz
50Hz
50Hz
Current
10amp
12amp
15amp
7.5 A
Kw
2.2
2.65
3.3
5.3
Coooling capacity-Btu/hr
11800
18156
23686
36000
Water pump-Max lift
2.5Bar
2.5Bar
3Bar
3.5Bar
Water flow rate
2L/min+>18L/min
2L/min+>20L/min
2L/min+>25L/min
2L/min+>35L/min
Water Temp.-Parameter
20-30*
20-30*
20-30*
20-30*
Ambient Temp
40
40
40
40
Precision
+/- 0.5
+/- 1*
+/- 1*
+/- 1*
Controller
Micro processor
Micro processor
Micro processor
Micro processor
Refrigerant
R-22
R-22
R-22
R-22
Safety Protection
Interlock
Interlock
Interlock
Interlock
Flow Switch
4Ltr
4Ltr
4Ltr
4Ltr
Moverment type
Wheels
Wheels
Wheels
Wheels
Dimension(L*W*H)mm
715*512*650
790*612*651
892*644*743
900*740*810
Weight
65kg
80kg
90kg
125kg
- • Advanced temperature control system for precise cooling
- • Compact size for easy installation and space-saving design
- • Energy-efficient operation to reduce operating costs
- • Durable construction for long-term use
- • User-friendly interface for easy operation and maintenance
- • Low noise level for a comfortable working environment
- • Advanced microprocessor control for accurate temperature regulation
- • Compact design for easy integration with machinery
- • High-quality components for long-lasting durability
- • Easy maintenance and service ability.
- • Temperature range: 15-35°C
- • Power supply: 220V/380V, 50/60Hz
- • Refrigerant: R32, R410, R22
- • Water flow rate: 2-35 L/min
- • Ambient temperature: 40°C
- • Control system: Micro process controller with digital display
