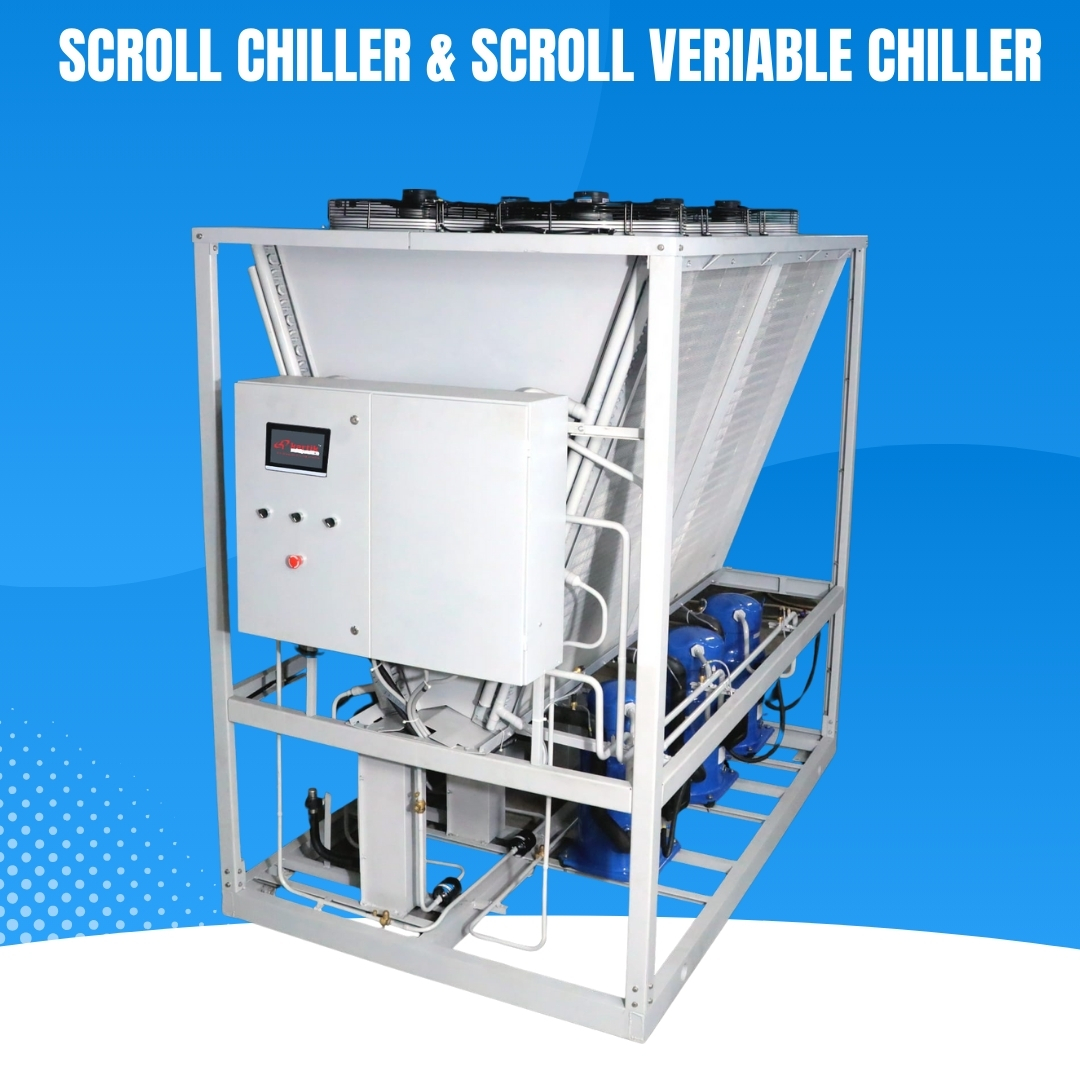

Scroll Chiller & Scroll Veriable Chiller

Description

Kartik Refrigeration, is the pioneer and a leading provider of integrated end-to-end solutions in the field of Laser Chillers and refrigeration. We are committed to provide customers with technology that suits their all needs and have introduced a wide variety of air-cooled scroll chillers with R 22 and R 407 C refrigerant options. With ISO 9001:2015 standard certified factories, we possesses total capability in the manufacture of scroll chillers. These chillers are available in a wide range of capacities from 5 TR to 110 TR. They are easy to install and commission and can handle varying cooling requirements, aided by multiple compressor configurations. Kartik Refrigeration’s scroll chillers have become an ideal choice for various air conditioning applications including, commercial Industries and process cooling requirements.

Unit Model No.	KLC-AC005-1SXM1	KLC-AC011-1SXM1	KLC-AC015-1SXM2	KLC-AC020-1SXM1	KLC-AC024-1SXM1	KLC-AC030-1SXM1	KLC-AC036-1SXM2
* Nom. Capacity ( TR )	5	11	15	20	24	30	36
Hearmatic scroll Compressor Qty.	1	2	1	4	3	6	4
Rpm	2900	2900	2900	2900	2900	2900	2900
Max. Allowable Operating Current Per Compr. ( Amps At 400 volts )	35	35	35	35	69	35	69
Operating Current per Compr.- Amps	23	23	23	23	37	23	37
Shell & Tube /Heat Exchanger Evaporator Water Flow Rate (USgpm)	29	59	90	120	149	180	200
**Water Nozzle Size NB (mm)	50	65	80	100	100	125	125
Fan & Tube Condenser Qty	2	2	2	4	4	4	4
Total CFM	11,000	22,000	26,000	42,000	44,000	48,000	52,000
Length (mm)	2500	2535	2535	2625	2625	2625	2625
Width (mm)	650	1270	1270	2236	2236	2236	2236
Height (mm)	1400	2340	2340	2340	2400	2440	2400

Unit Model No.	KLC-AC005- 1SXM1	KLC-AC011- 1SXM1	KLC-AC015- 1SXM1	KLC-AC-020- 2SXM2	KLC-AC-024- 2SXM2	KLC-AC-030- 3SXM3	KLC-AC-036- 3SXM3
* Nom. Capacity ( TR )	5	11	15	20	24	30	36
Hearmatic scroll Compressor Qty.	1	2	3	4	3	6	4
Rpm	2900	2900	2900	2900	2900	2900	2900
Max. Allowable Operating Current Per Compr. ( Amps At 400 volts )	35	35	35	35	69	35	69
Operating Current per Compr.- Amps	23	23	23	23	37	23	37
Shell & Tube /Heat Exchanger Evaporator Water Flow Rate (USgpm)	29	59	90	120	149	180	200
**Water Nozzle Size NB (mm)	50	65	80	100	100	125	125
Fan & Tube Condenser Qty	2	2	2	4	4	4	4
Total CFM	11,000	22,000	26,000	42,000	44,000	48,000	52,000
Length (mm)	2500	2535	2535	2625	2625	2625	2340
Width (mm)	650	1270	1270	2236	2236	2236	2360
Height (mm)	1400	2340	2340	2340	2400	2440	1575

• Excellent efficiency making them ideal choice for Green building CVD projects and other applications.

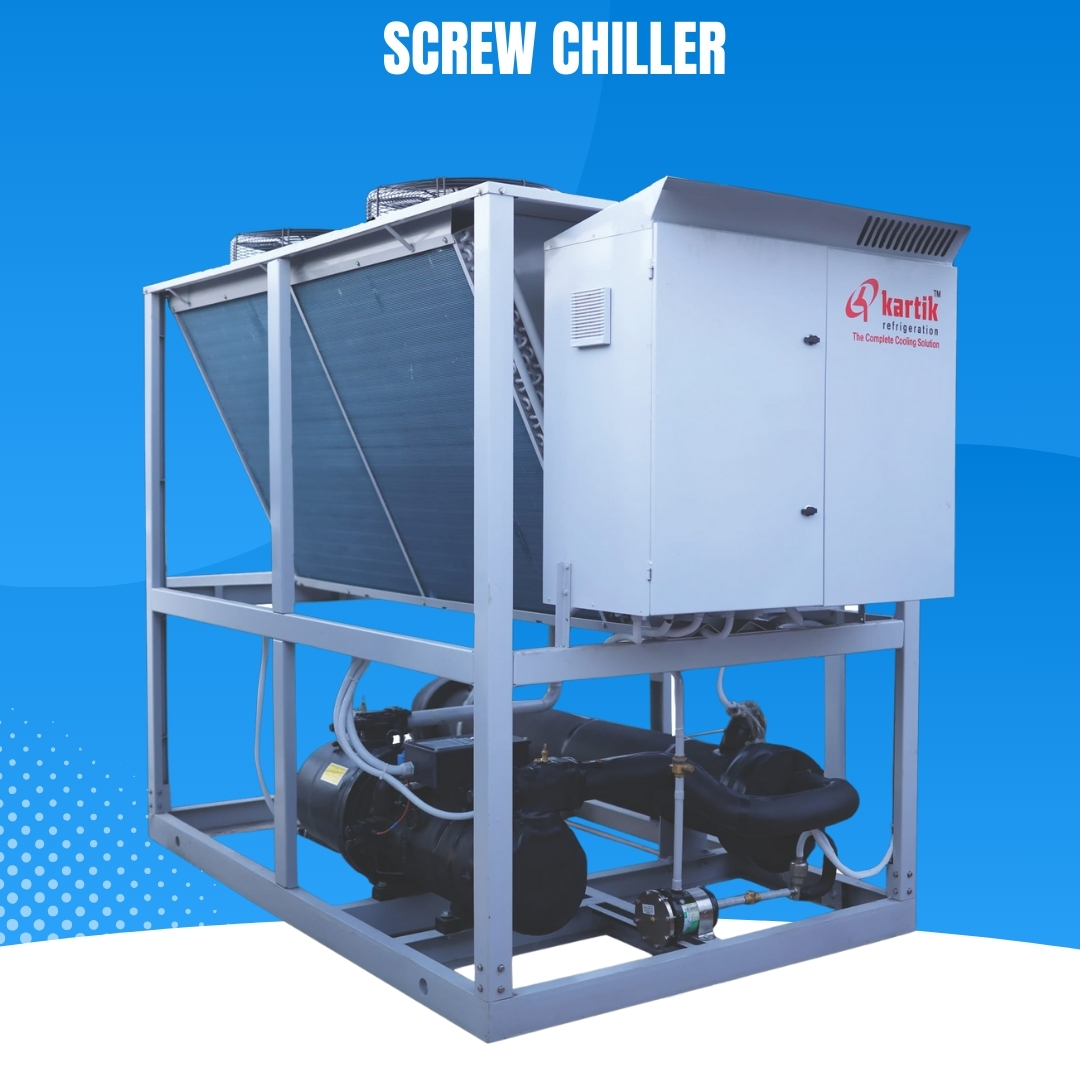

• Wide range of air cooled screw chillers using eco-friendly refrigerant R-134a.
• Advanced micro-computer control is a standard feature.
• Adaptive control offers the advantages of chiller running unloaded, instead of tripping.
• Electronic expansion valve with controller and sensor respond quickly to the variable operating conditions and enhances efficiency.
• Compressor with stepless capacity control mechanism precisely matches the part load requirements.
• Each compressor is provide with self-motor protection module, PTC motor winding protection, oil temperature protection, oil level switch and oil heaters all these guaranty reliability and long life.
• Condenser copper tubes are inner groove type with enhanced heat transfer capacity
• Evaporators are manufactured using imported and highly efficient, compact rigged inner finned copper tubes.
• Removable water heads.
